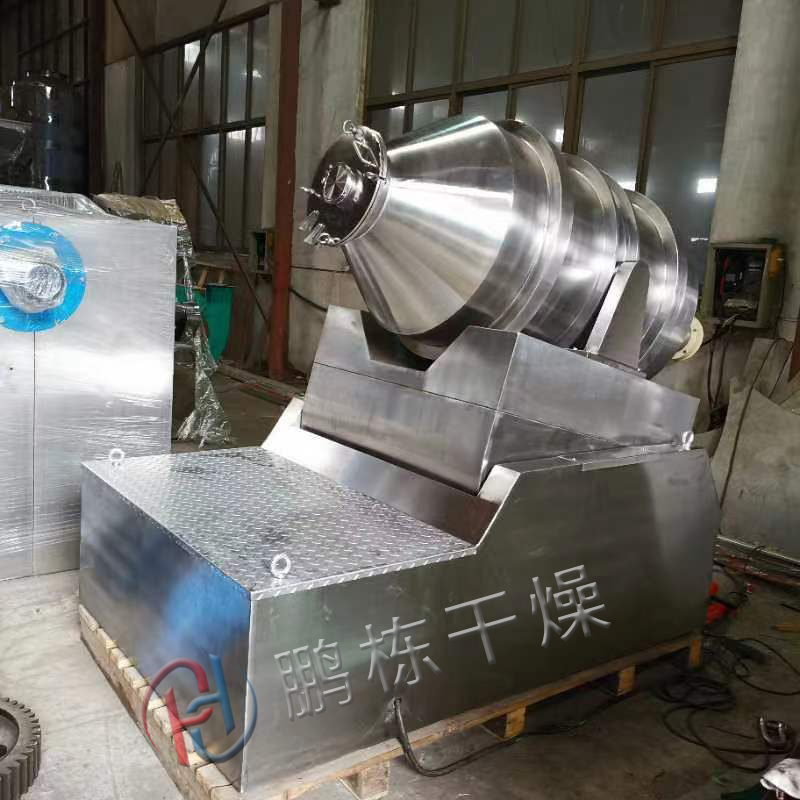

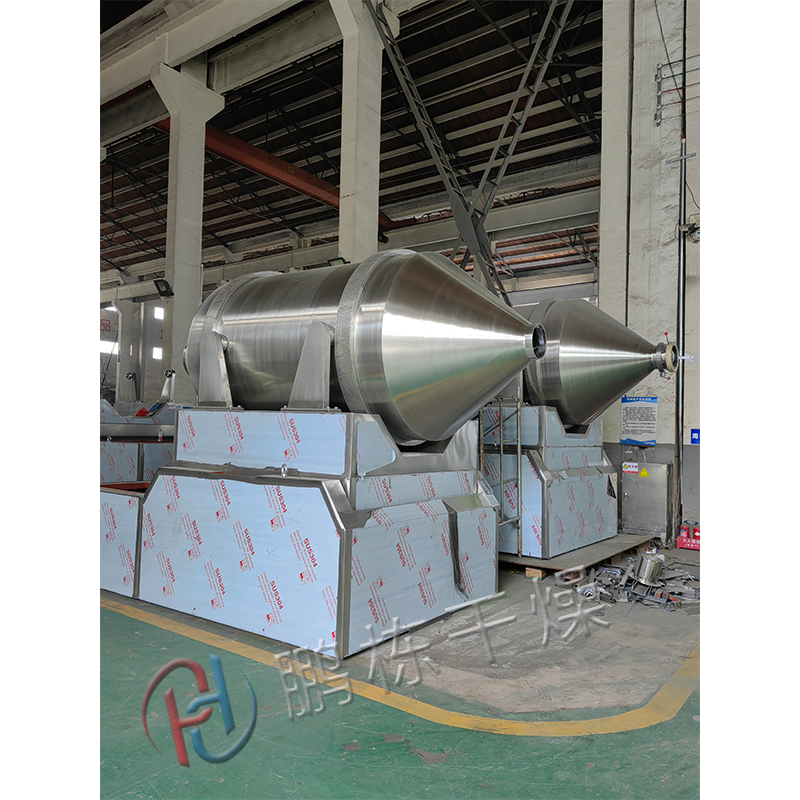

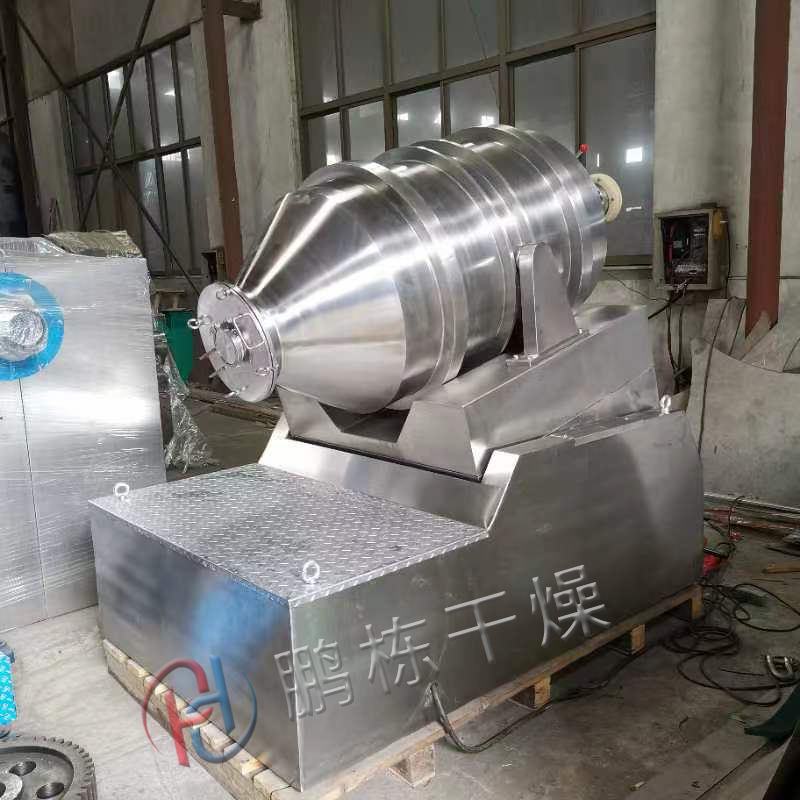

EYH Rock two dimensional mixer

keyword：EYH Rock two dimensional mixer，Rock two dimensional mixer

CLASSIFICATION：Product Center -> Hybrid series

DESCRIPTION:

Two-dimensional mixer refers to the mixer whose drum can move in two directions at the same time. The two directions of movement are respectively the rotation of the drum, and the swing of the drum with the swing frame. The mixed material rotates, turns and mixes with the drum in the drum, and at the same time, the mixing movement occurs left and right with the swing of the drum. Under the joint action of these two movements, the material is fully mixed in a short time.

Online ordering

Details

Video

Product introduction：

Two-dimensional mixer refers to the mixer whose drum can move in two directions at the same time.

The two directions of movement are respectively the rotation of the drum, and the swing of the drum with the swing frame. The mixed material rotates, turns and mixes with the drum in the drum, and at the same time, the mixing movement occurs left and right with the swing of the drum. Under the joint action of these two movements, the material is fully mixed in a short time.

Technical parameter：

Model	Barrel volume L	Loading capacity L	Loading quantity kg/ batch	Number of shaking and turning (times/min)	Total motor power kw	Overall dimension mm	Gross weight kg	Barrel weight kg
EYH-10	10	5	2.5	85	0.021	310400450*395	15	4
EYH-30	30	15	7.5	61	0.19	540580900*700	60	8.5
EYH-60	60	30	15	50	0.4	7007301100*990	115	15
EYH-150	150	75	37.5	37	1.15	80010501450*1340	190	50
EYH-300	300	150	75	30	1.15	90013501550*1400	340	60
EYH-600	600	300	150	23.6	3	117016402050*1910	1150	140
EYH－800	800	400	200	19.8	3	132019502150*2000	1600	200
EYH-1000	1000	500	250	19.8	3	13602, 0402300*2170	1700	240
EYH－1500	1500	750	375	16.2	4.4	158024002550*2330	2000	320
EYH-2000	2000	1000	500	16.2	7.4	174026002770*2550	2600	430
EYH-3000	3000	1500	750	13.8	11	180029002950*2800	3500	620
EYH-4000	4000	2000	1000	12.8	13	197033003300*2950	4100	700
EYH-6000	6000	3000	1500	11.2	18.5	230029003800*3100	6100	1100
EYH-8000	8000	4000	2000	10.4	22	254041004050*3650	7900	1450
EYH-10000	10000	5000	2500	9	30	290045004400*4020	9500	1650

The above data is for reference only, our company reserves the right to change the above data, if there is any change, without prior notice.

Working principle：

The two-dimensional mixer is mainly composed of three parts: a drum, a swinging frame and a frame. The rotating cylinder is mounted on the swinging frame, supported by four rollers and axial positioning by two stop wheels. In the four supporting rollers, two of the transmission wheels are dragged by the rotating power system to turn the rotating cylinder. The swinging frame is driven by a set of crank pendulum rod mechanisms, the crank pendulum rod mechanism is on the frame, and the swinging frame is supported by the bearing assembly on the frame.

Product characteristics：

The rotor of the EYH two-dimensional mixer can carry out two movements at the same time, one is the rotation of the rotor, and the other is the swing of the rotor with the swing frame. At the same time, the mixed material rotates, turns and mixes with the drum in the drum, and the mixing movement occurs left and right with the swing of the drum. Under the joint action of these two movements, the material is fully mixed in a short time, which has the characteristics of rapid mixing, large mixing amount and convenient discharging.
